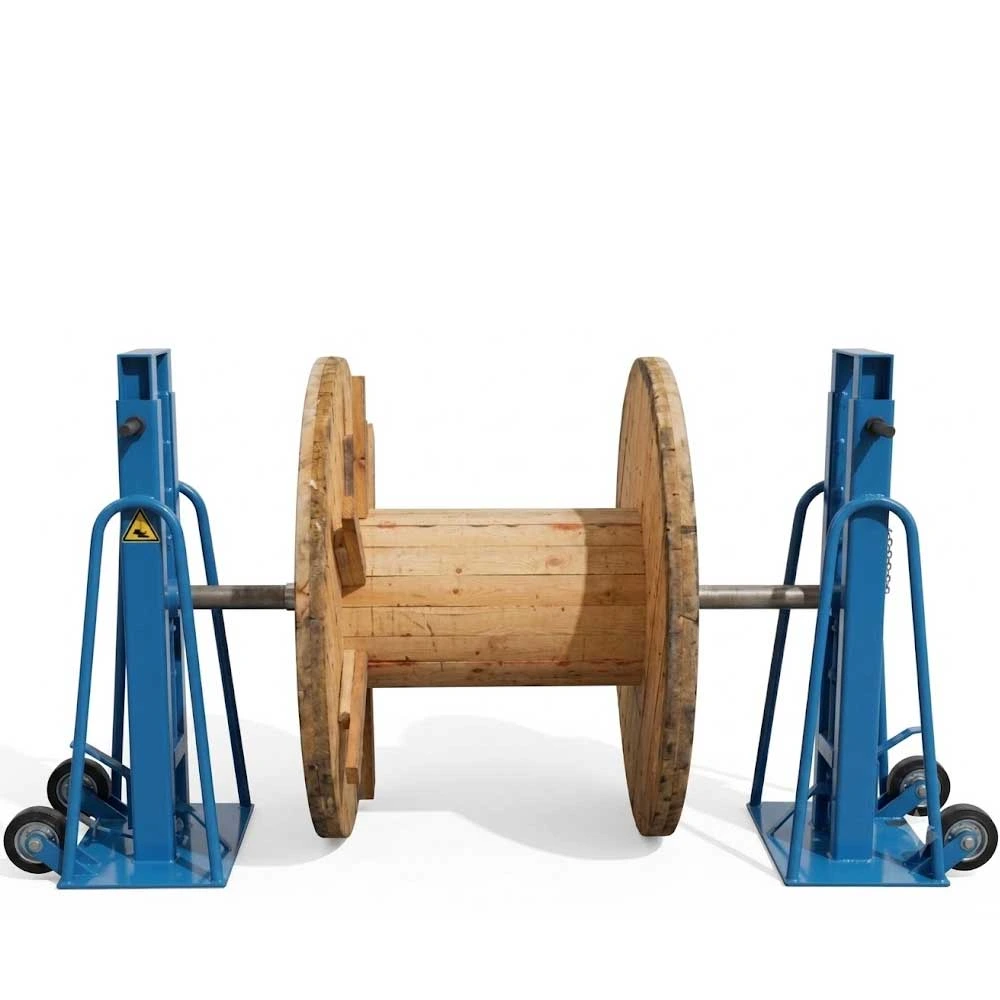

Cable Drum Lifting Jack

Specification	HCJ17-03	HCJ17-05	HCJ17-10	HCJ17-12	HCJ17-15
Capacity / Pair	3 + 3 Ton	5 + 5 Ton	10 + 10 Ton	12 + 12 Ton	15 + 15 Ton
Min–Max Cable Drum Dia.	800–2400 mm	900–3200 mm	1000–3600 mm	1000–3600 mm	1200–3800 mm
Base Size	650 × 350 mm	800 × 400 mm	850 × 450 mm	900 × 500 mm	1000 × 500 mm
Overall Height	1400 mm	1700 mm	1900 mm	2040 mm	2250 mm
Weight	150 kg / Pair	180 kg / Pair	230 kg / Pair	280 kg / Pair	360 kg / Pair
Product Finish	Powder Coated	Powder Coated	Powder Coated	Powder Coated	Powder Coated
Solid Spindle Dimensions Diameter × Length	63 × 2000 mm	76 × 2000 mm	90 × 3000 mm	90 × 3000 mm	100 × 3000 mm

Description

Cable Drum Jacks are primarily designed for safely lifting and supporting cable drums during cable installation and pulling operations. They enable smooth and controlled rotation of the drum, making it easier to move and feed cable from one location to another.

For safe and efficient drum lifting, insert a suitable shaft through the center of the cable drum and position the jacks securely on both sides. Use a shaft with sufficient length to ensure proper support and stability while preventing unnecessary pressure or damage to the drum flanges.

Designed for reliable performance, Cable Drum Jacks help ensure smooth cable handling while reducing the risk of drum damage during installation.
