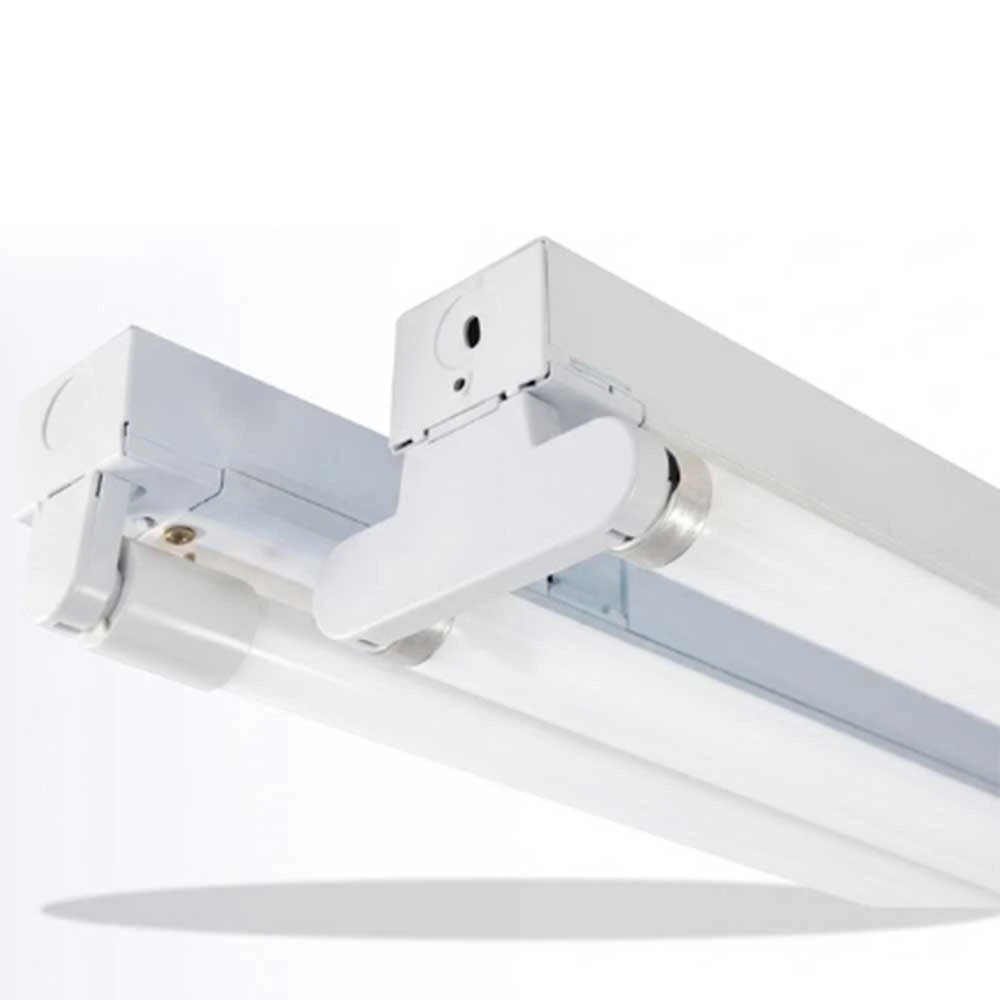

Batten LED Fitting for T8 Tube

Specification	12W LED T8 Tube (2ft)	24W LED T8 Tube (4ft)
Tube Length	2 ft (600 mm)	4 ft (1200 mm)
Body Size	Ø26 × 600 mm	Ø26 × 1200 mm
Power	12W	24W
Input Voltage	AC 220–240V, 50/60Hz	AC 220–240V, 50/60Hz
CCT	3000K / 4000K / 6500K	3000K / 4000K / 6500K
CRI	≥80	≥80
Luminous Flux	Approx. 1,550 lm*	Approx. 3,100 lm
LED Type	SMD	SMD
Power Factor (PF)	>0.5	>0.5
Material	PC + Glass	PC + Glass

Description

CCT Options
3000K – Warm White
4000K – Neutral White
6500K – Cool White
*The 12W luminous flux is estimated by scaling from the provided 24W specification (3,100 Im). Replace it with the manufacturer’s official lumen rating if available.
