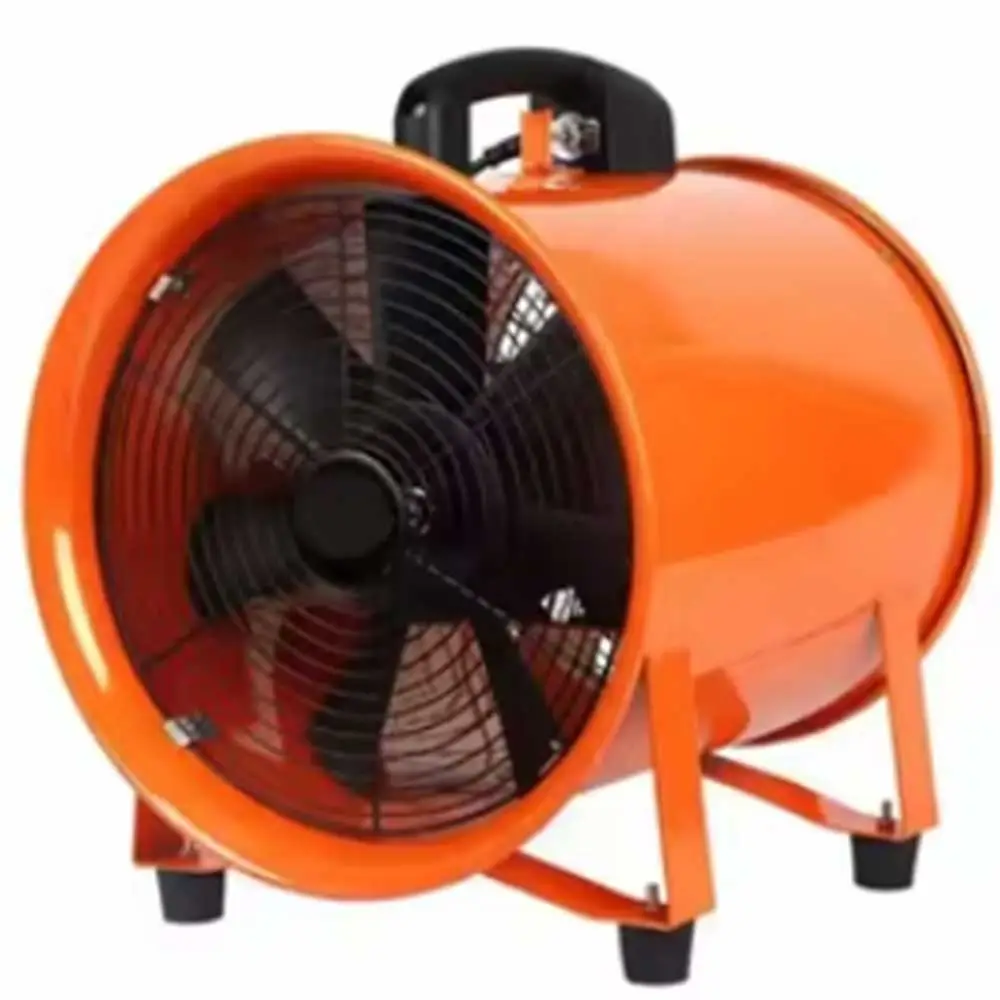

Axial Fan

Axial Fan

Specification	–	–	–	–	–	–
Fan Diameter	12″	16″	18″	20″	24″	32″
Diameter (mm)	300 mm	400 mm	450 mm	500 mm	600 mm	800 mm
Voltage	AC 220–240V 50/60Hz	AC 220–240V 50/60Hz	AC 220–240V 50/60Hz	AC 220–240V 50/60Hz	AC 220–240V 50/60Hz	AC 380V 50/60Hz
Speed (RPM)	2920/3450	2920/3450	2920/3450	2800	1400	1450
Air Capacity (m³/h / CFM)	3600 / 2120	5760 / 3390	7200 / 4240	12000 / 7062	17400 / 10240	—
Power (W)	70	80	82	75	280	—
Static Pressure (Pa)	550	700	750	800	2200	—
Noise dB(A)	—	80	82	75	80	—

Description

Its practical construction makes it suitable for a wide range of residential, commercial, industrial, and ventilation applications. The fan is ideal for improving airflow, removing heat, moisture, odors, and stale air from enclosed areas.

Key Features:

Efficient axial airflow design for effective ventilation
Designed to move high volumes of air
Suitable for continuous air circulation and ventilation
Helps remove heat, moisture, odors, and stale air
Practical design for easy integration into ventilation systems
Suitable for residential, commercial, industrial, and utility applications
Ideal for workshops, warehouses, factories, kitchens, bathrooms, and enclosed spaces
Designed for reliable performance and long-term operation
