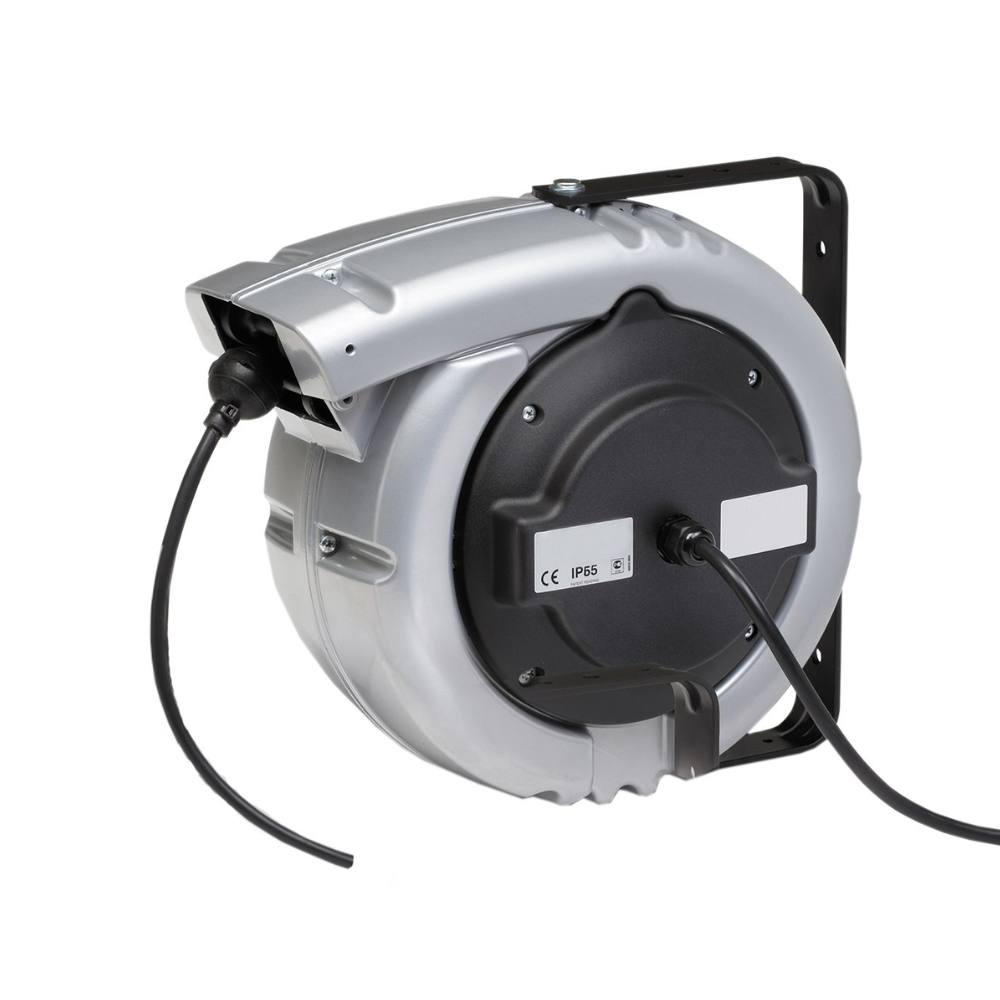

Industrial Cable Reel

Features of the IP65 industrial cable reel:
– length of 16+2 meters
– section of 1 mm
– number of conductors: 7X
– wound cable capacity (@20°C): 3 A

Technical characteristics of the industrial cable reel:

• Structure in die-cast aluminum painted with epoxy powders.
• Roller cable guide mouth.
• Rack cable stop device that can be inserted every 50cm.
• All cable reels are supplied with the cable stop device disengaged.
• Easily inserted.
• Double earth contact.
• Brass collector rings and special brushes with very low voltage drop.
• Collector insulation voltage 2.5 KV.
• Slip contacts with slip ring and brushes.
• IP65 degree of protection.
• Ambient temperature of use -5°C/+50°C.
• Supplied with 2m power supply side cable.
